How Many Amps Are Needed to Jump Start a Semi Truck?

The larger the semi truck engine, the more amps a portable jump starter requires. This depends not only on the engine size but also on whether it runs on diesel or gasoline. For special cases such as new energy trucks, extreme cold-weather operations, or military vehicles, a custom battery solution may be necessary to ensure reliable starting power.

The required amps to jump start a semi truck are closely related to Cold Cranking Amps (CCA), which is the industry standard in both Europe (EN, DIN) and the U.S. (SAE). These standards define how batteries are tested for cold-start performance, and while the methods differ, they provide a comparable range for real-world starting requirements.

1. Generally, around 1000 amps is sufficient for a light pickup truck.
2. Common semi-truck diesel engines require between 1500 and 3250 starting amps (≈1500–3000+ CCA).
3. For large semi trucks with over 10.0L diesel engines, the real-world need is usually 3000–4000+ CCA starting amps. Some commercial jump starters advertise up to 7000 peak amps, but this refers to peak output, not the continuous amps actually needed to start the engine.

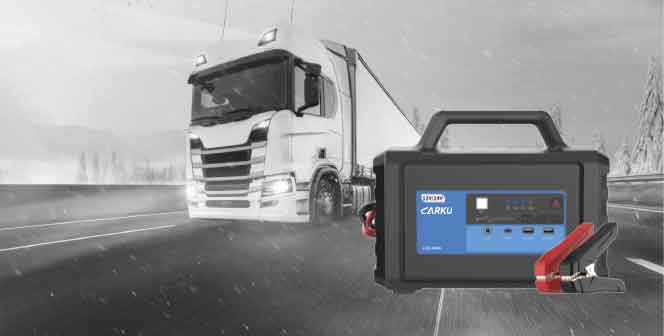

Image: 24v jump starter JS-396

Choosing the Right Jump Starter: 12V for Cars or 24V for Semi Trucks

In many breakdown scenarios, truckers face dead batteries in semi-trucks, especially when long-haul driving in freezing regions puts extra strain on the electrical system and truck batteries. Extended idling or harsh cold starts can quickly drain power, leaving drivers stranded far from help.

The JS-396 and JS-557 are two professional-grade models designed for different use cases. Match the amps to the vehicle type, the following is the table image between 12V jump starter and 24V heavy duty jump starter.

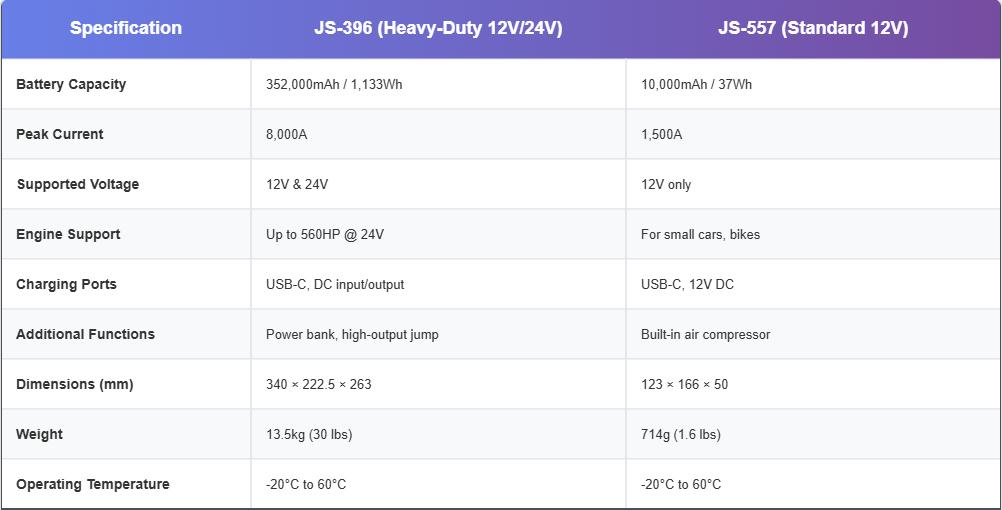

Table image: JS-396 VS JS-557

After comparing both models, it’s clear that a semi truck requires a jump starter like the CARKU JS-396, with peak amps of 8,000A and support for 24 volt systems. For compact cars or light vehicles, the JS-557 is a lightweight and practical solution, offering ample power for 12V systems and convenient extras like an air compressor.

And they're lithium-ion series, lightweight and no maintenance, saving cost and ensuring reliable long-term performance, making them the right fit whether you need a 12V battery solution for cars or a 24V jump starter for trucks in demanding environments.

Can 1000 Amps Start a Semi Truck?

When a truck battery dies on the road, drivers often need a portable jump starter to bring the vehicle back to life—especially if there’s no another truck nearby to help. However, 1000 amps alone is rarely enough to jump-start a semi truck. Heavy-duty rigs often use two batteries in series with a 24V electrical system, and their large diesel engines demand far more power to start, particularly in cold weather. In these cases, a 1000-amp jump starter will struggle to crank the engine and is not reliable for dead trucks. On the other hand, for cars or light duty trucks with 12V systems, a 1000-amp unit can be effective—especially when the engine displacement is modest and conditions aren’t freezing.

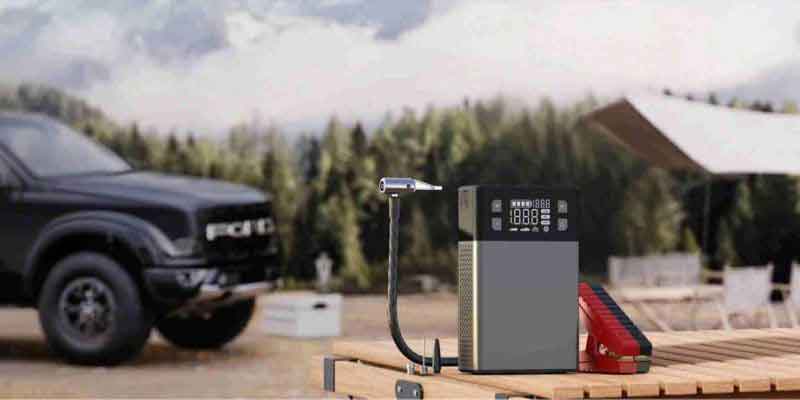

Image:12v jump starter JS-557

12V vs 24V: Understanding Semi Truck Battery Systems in 2025

The fundamental difference between 12V and 24V electrical systems lies in their power delivery capabilities and intended applications. This comparison will examine real-world applications using the JS-396 (12V/24V) and JS-557 (12V only) jump starter specifications as reference points.

For series connection, connecting two 12V batteries in series creates a 24V system, where voltage doubles while current remains constant. This is precisely why long-haul semi trucks, heavy-duty construction vehicles, and other high-power commercial vehicles choose 24V systems. In real-world use, 24V truck maintenance often involves checking the health of both batteries, ensuring balanced charging, and dealing with higher cold cranking requirements—any imbalance can cause starting issues or shorten battery life. A reliable 24V jump starter, such as the JS-396, provides the necessary backup when a dead truck cannot be started by another vehicle.

For parallel connection, connecting two 12V batteries in parallel keeps voltage unchanged while increasing current capacity, making it more suitable for passenger cars, light-duty trucks, and RVs, where a 12V jump starter like the JS-557 is sufficient.

How To Jump Start a Large Semi Truck?

Jump-starting a semi-truck step-by-step isn’t just about connecting a few cables. These heavy-duty vehicles often use dual battery systems wired in series or parallel, and understanding its difference is critical to avoid battery issues when using the 24v heavy duty jump starters. The following critical mistakes also need to avoid.

1.Mismatched voltage jump starters: Using a 12V-only device on a 24V semi-truck system will fail—or worse, cause damage.
2.Poor grounding: In a truck-to-truck jump-start using heavy-duty jumper cables, always connect the black clamp to a clean, unpainted metal frame or engine block away from the battery. This prevents sparks near the battery, protects the electrical system, and ensures a safer current path for starting a dead truck.
3.Wrong battery selection: Jumping the incorrect battery in a dual-battery setup reduces efficiency and can prolong cranking time.

Use a 24v jump starter, like the carku JS-396, designed specifically for trucks.Making it an ideal solution for semi-trucks with dual battery configurations.

Step-by-step Semi-Truck Jump-Starting Guide

Option 1: Truck-to-Truck with Heavy Duty Jumper Cables

• Step 1. Position and Prepare
• Park the donor vehicle nose-to-nose or side-by-side with your dead car.
• Turn off both engines and engage parking brakes.
• Pop both hoods and locate battery terminals.
• Step 2. Connect the Jumper Cables
• Red cable first: Connect positive (+) terminal on dead battery
• Red cable second end: Connect to positive (+) terminal on good battery
• Black cable to good battery: Connect negative (-) terminal on donor vehicle
• Black cable final connection: Attach to unpainted metal ground (not negative terminal) on dead car
• Step 3.Start and Wait
• Start the donor vehicle and let it run for 2-3 minutes
• Attempt to start your dead vehicle
• If unsuccessful after 3 attempts, stop and seek professional help.

Option 2: Semi-Truck Portable Jump Starter (2025 CARKU manufacturer's instruction)

Make sure the portable jump starter JS-396 is fully charged.
Connect the red clamp to the positive terminal of the dead truck’s battery.
Connect the black clamp directly to the negative (–) terminal of the battery.
Keep the jump starter powered on until the semi truck starts as normal.
Once the engine is running, disconnect the clamps in reverse order and recharge the jump starter for future use.

Frequently Asked Questions

1. Can you jumpstart a 24v truck with a 12v car?

No. A 12V system does not provide enough voltage to safely start a 24V truck. Always check the truck’s battery voltage before attempting a jump-start. If it’s a 24V setup with two batteries in series, you’ll need a jump starter or power source that matches 24V requirements.

2. Can a truck battery be too dead to jump?

Yes. If a battery is completely discharged or internally damaged, such as when there are no dashboard lights or electrical response—jump-starting won’t help. In most cases, though, as long as the battery still holds a minimal charge, applying enough current can bring the truck back to life.

3. Is it okay to jumpstart a diesel truck?

Knowing how to jump-start properly is important. For diesel truck owners, you need to ensure the jump starter or power source has enough charge, and match it to the truck’s voltage system.
