Discover how CARKU, a 15-year jump starter manufacturer, leverages LiFePO4 & BMS tech for the JS-632. Explore turnkey OEM/ODM customization for your brand.
2026 OEM Guide: Defining the Modular Multi-Function Jump Starter Platform
Before exploring customization, it is helpful to clarify the commercial distinction between OEM and ODM.
The JS-632 is built on a private-mold platform. This turnkey approach allows you to swiftly launch your branded product by leveraging our field-tested, fully owned tooling and structural design—eliminating hefty upfront NRE (Non-Recurring Engineering) and tooling costs.
To simplify your team’s product evaluation, we’ve categorized the JS-632 customization options into a clear three-tier framework:
| Custom Categories | Specific Projects | Description and Terms of Delivery |
| OEM Standard | Logo screen-printed on the casing, casing color spray-painted, packaging: color box/kraft box, folded instruction manual, Oxford cloth pouch/EVA pouch | This falls within the scope of standard OEM customization; no additional tooling is required, and production can proceed as long as the MOQ is met. |
| ODM/Deep Customization | Firmware boot screen, system beeps, multilingual UI, cell capacity, BMS protection thresholds | This involves software/hardware fine-tuning, which requires an assessment of the development timeline, firmware rewriting costs, and the lead time for procuring specialized components. |
| Fixed Chassis Platform | Mold for the machine’s overall housing structure, internal air pump and cylinder structure, and physical layout of the PCB mainboard | It is a fixed private mold platform that ensures consistency in the factory-produced structure and high reliability. |
12V vs. 24V Systems: Selecting the Right Architecture for Your All-in-One Jump Starter
General Selection Criteria:
12V Architecture: Powers the vast majority of passenger cars, sedans, SUVs, pickups, motorcycles, and light gasoline/diesel vehicles.
24V Architecture: Purpose-built for commercial heavy-duty trucks, motor, and construction machinery.
While 12V and 24V systems differ significantly in peak cranking current, system voltage, and terminal requirements, CARKU’s dual-voltage technology can engine-start both passenger vehicles and commercial trucks from a single unit at the touch of a button.
JS-632 Positioning: 12V Multi-Functional Jump Starter with Integrated Air Compressor
The JS-632 is a 12V multi-functional jump starter featuring an integrated air compressor. Engineered specifically for 12V passenger cars, light trucks, and SUVs, it combines jump-starting capability, tire inflation, an ultra-bright LED flashlight, and high-speed power bank functionality into one compact housing.

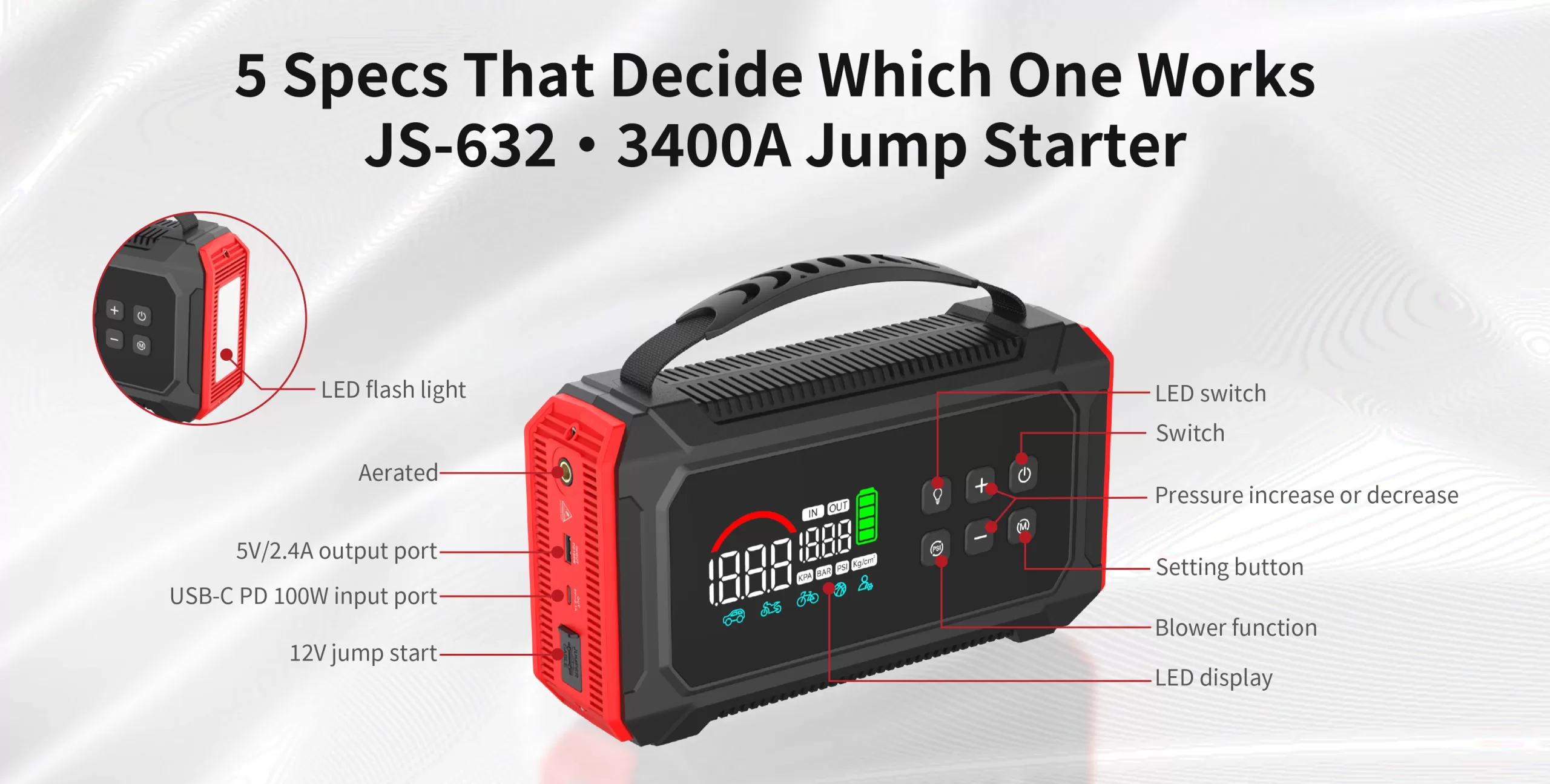

Carku JS-632 3400A jump starter with annotated callouts for peak amps, battery, inflation, safety protection, and extra features
Battery Cell Technology: Why High-Rate LiFePO4 Powers the Best Multi-Purpose Jump Starters
For combination units featuring an internal air compressor, cell chemistry directly governs product safety, service life, and post-market RMA rates.
How to Evaluate Battery Cell Quality:
Cycle Life: Will the cells sustain performance through hundreds of heavy discharge cycles without capacity fade?
Thermal Stability: Does the chemical structure resist thermal runaway at elevated temperatures?
Heat Tolerance During Inflation: Can the battery withstand heat generated during prolonged air pump operation?
BMS Safety & UI Logic: What Makes a Reliable Commercial Multi-Function Emergency Unit?
The JS-632 utilizes high-rate LiFePO4 cells featuring exceptional thermal decomposition thresholds and a flat discharge curve. They effortlessly handle internal heat buildup during continuous pumping while maintaining reliable cold-cranking performance in sub-zero winter temperatures—dramatically reducing warranty returns at the source.
Market Trade-offs: When is LiFePO4 NOT Suitable for a Portable Jump Starter?
- Ultra-Compact / Pocket-Sized Designs: LiFePO4 has a lower volumetric energy density compared to NCM (Ternary Lithium). If your roadmap prioritizes ultra-slim, pocketable form factors, NCM remains the preferred option.
- Ultra-Low-Cost Race-to-the-Bottom Products: Premium LiFePO4 cells carry a higher bill-of-materials (BOM) cost than standard NCM cells, making them unsuitable for budget-tier, low-quality price wars.
To prevent damage to vehicle electronics or hazardous thermal events during abnormalities (over-current, over-voltage, short circuits, reverse polarity), the unit integrates 10 multi-stage safety protections.
Beyond internal circuitry, here is how the safety logic translates to real-world user interface alerts:
- Reverse Polarity / Short-Circuit Alert: If clamps are reversed or shorted, the Smart Clamp LED flashes red alongside an audible buzzer; the mainboard instantly cuts off output, and the LCD displays zero voltage.
- Over-Temperature / Continuous Pumping Protection: If internal temperatures exceed safe limits, a thermal warning icon triggers on the display and pauses the pump until the unit cools down.
- Low-Voltage Cutoff: When internal battery capacity drops below safe operating limits, a low-battery icon flashes on the panel and locks high-current output to prevent deep discharge cell damage.
Customization Scope: Tailoring Your Branded Multi-Functional Booster
- Customizable Branding Features: Startup logo animation on the LCD screen, system alert tones, and localized multi-language UI menus.
- Non-Modifiable Safety Controls: All hardware-level threshold protections follow strict factory safety standards and cannot be altered or lowered.
Buyer Tip for Supplier Evaluation: Ask prospective vendors: “If the clamps are shorted or reversed while the forced-start button is pressed, how does the interface and buzzer respond?” Suppliers who can clearly define these edge-case failure modes demonstrate true mastery over their BMS software architecture.
Factory Validation & Compliance: Patent Protection & International Shipping Standards
We provide verifiable, objective compliance data for intellectual property and quality assurance:
Patent Protection: The JS-632 holds utility model patents and IP protections globally, safeguarding overseas distributors against infringement risks and generic copycat competition.
Testing & Certification: The unit has completed rigorous thermal operational testing (-20°C to 60°C / -4°F to 140°F), drop-impact resistance, and continuous inflation pressure tests. Every shipment includes UN38.3 test reports and MSDS documentation for seamless ocean/air freight dangerous goods customs clearance.
Standard Package Contents
- Kraft Box
- USB Cable (USB to USB-C)
- Smart Jumper Cable
- High-Pressure Air Hose
- Multi-purpose Nozzle Adaptor Kit
B2B Procurement FAQs
Q1: What is the sample lead time for the JS-632?
Standard evaluation samples ship within 3–5 business days. For customized samples featuring custom branding/logos or localized retail packaging, lead time is 7–12 business days.
Q2:How are sample logistics and dangerous goods shipping handled?
Because jump starters contain high-rate lithium batteries, samples require compliant Dangerous Goods (DG) shipping channels.
If you have your own forwarder: We offer EXW/FOB factory delivery or freight-collect pickup.
If you do not have a forwarder: We can route the shipment through our accredited DG logistics partners and include the shipping cost in the sample invoice.
Q3:Can we increase battery capacity or alter circuit functions under an OEM arrangement?
No. Cosmetic modifications (housing print, color schemes, branding, packaging) fall under OEM. Modifications to battery capacity, cell chemistry, or PCBA logic qualify as ODM development. Hardware or cell adjustments require complete re-engineering, firmware adaptations, and new certification testing cycles, and cannot be treated as quick OEM options.
Q4: Can product manuals and promotional literature be translated into multiple languages?
Yes. Upon receiving your localized translations, we handle multi-language printing and package integration prior to final shipment.
Q5: How does a multi-functional jump starter differ in market positioning from a standalone tire inflator?
Standalone Inflator: High-frequency, entry-level maintenance tool with a lower average order value (AOV). Best suited for volume-driving or entry-level accessory lines.
Multi-Functional Jump Starter (e.g., JS-632): High-margin premium emergency solution. It addresses two critical automotive vulnerabilities—dead batteries and low tire pressure—offering significantly higher perceived value, higher margin potential, and strong consumer peace of mind.
Q6: What is the Minimum Order Quantity (MOQ) for the JS-632?
MOQ depends primarily on custom housing prints and packaging print runs. The standard ODM MOQ is 1,000 units. Contact our sales team for tiered pricing structures tailored to your order volume.
Q7: What are your standard B2B payment terms?
We follow standard B2B payment terms: 30% T/T deposit upon contract signing for raw material procurement and production scheduling, with the remaining 70% balance due upon bulk production completion, final QA inspection, and prior to shipment.
