EPower-60

1200A Peak Current Truck 12V CARKU Jump Starter


1200A peak current jump starter power pack is a professional emergency tool to start petrol and diesel vehicles. Compact lightweight 12V jump starter is ultra safe as various power source for petrol car, diesel truck, mid size SUV, mower, boats, ect, and for mobile electronics, smart phone, bluetooth, speaker, portable fan,MP3/4,camera,tablet PC.

Model Number Epower-60 Product Name Jump Starter
Brand Name CARKU Function Jump Start Vehicles
Warranty 12 Months Scenes Insufficient batteryBattery agingLow temperature and severe cold
Battery Capacity 30000mAh / 111Wh Types of Cars Motorcycle,Yacht,Pickup Truck,Min Bus,SUV,Car,Tractor,Cleaning Car,Forklift,Off-road Vehicle,Agricultural Machinery,Excavator,Crane Truck,Bus,Truck.
Output1 Dual Quick PD30W charge(5V/2.4A, 9V/2A, 12V/1.5A) Operating Temp -40℃~60℃,Jump Start at Low Temperature
Output2 1W LED light Gasoline Car 12V For All 12V Car
Output3 12V Car Jump Start Diesel Car 12V For All 12V Car
Input Quick charge PD30W(5V/2.4A, 9V/2A, 12V/1.5A) Gasoline Car 24V YES
Peak Current 1200A Safety Design Ten Protections Short-Circuit Protection;Over-Temperature Protection;Over-Charge Protection;Over-Discharge Protection;Over-Current Protection Protect;Over-Voltage Protection;Reverse Polarity Protection;Reverse-Charge Protection;Ultimate Low Electricity Consumption Protection;AI Software Protection.

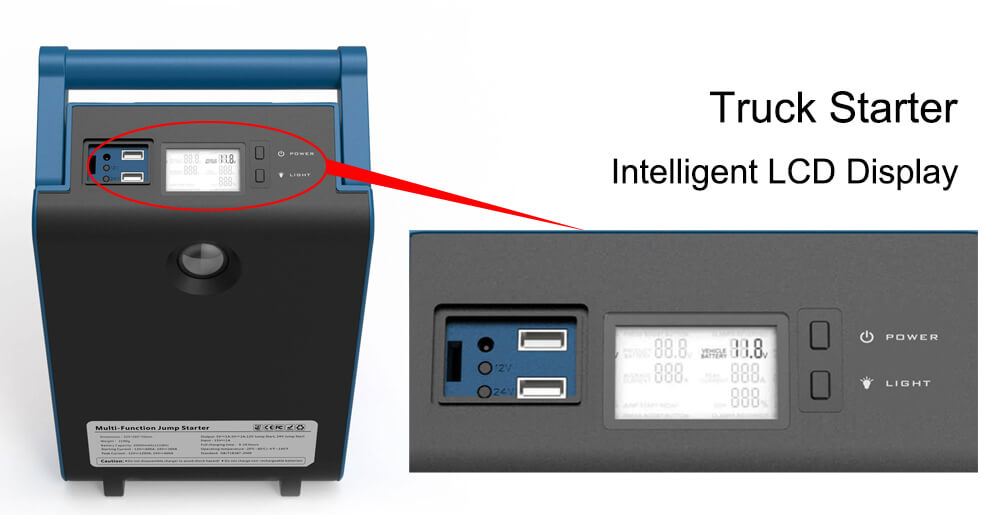

How to get understand data of LCD display for 12V lithium starter charger

CHARGING XX%

Shows up the percentage of being charged when it is connected to 230V power supply


BATTERY XX%

Shows up the amount of internal battery capacity. At least 60% are recommended to jump start a car.


LOW BATTERY RECHARGE NOW

Indicates low battery, please recharge.


LIGHT

The steady light will show up after pressing the Light Switch once.


FLASH

the strobe light will come up after pressing the Light Switch twice.


SOS

the SOS warn light will show up after pressing the Light Switch three times.


USB1 USB2 ON

USB port 1 and 2 are available to recharge mobiel USB devices


WARNINGCLAMPS REVERSED

Shows that the clamps are connected reversely. At this time the start is prevented. Please remove the clamps and connect them in the right way. The red clamp must be connected to the positive (+) terminal and the black clamp to the negative (-) terminal of the battery. If you are sure that the connections are correct but this warning still shows up, press the Power button for three seconds to ignore this warning.


SHORT CIRCUIT CHECK ALL CONNECTIONS

__kindeditor_temp_url__It indicates a short circuit. At this time the start is prevented. Please remove the clamps and press the power button for three seconds before reconnecting the clamps to the battery.


12V JUMP START READY

Shows up when EPower-60 is connected to a 12V battery and is ready to jump start. If EPower-60 cannot detect the battery or the battery is too low to be detected, you may use the “Expert Mode” for manually choosing your 12V battery type and jump start your 12V car battery.


24V JUMP START READY

Shows up when EPower-60 is connected to a 24V battery and is ready to jump start. If EPower-60 cannot detect the battery or the battery is too low to be detected, you may use the “Expert Mode” for manually choosing your 24V battery type and jump start your 24V car battery.



Accessories:

* PU bag

* Car charger

* 3 in 1 USB cables

* Home Charger

* Smart jumper cable

* Manual


How to jumpstart lithium battery starter charger EPower-60?


1.Make sure the battery is not less than 60% shown on the LCD display.
2.Connect the RED clamp to the vehicle's battery positive (+) terminal and connect the BALCK clamp to the vehicle's battery negative (-) terminal.

3.When you use EPower-60 jump start 12V car,it diaplays"12V JUMP START READY",when you use EPower-60 jump start 24V car,it diaplays"24V JUMP START READY".
4.Start the vehicle.

5.When the vehicle is restarted, please remove the jumper cable from Jump Starter and remove RED and BALCK clamps from the vehicle battery.
